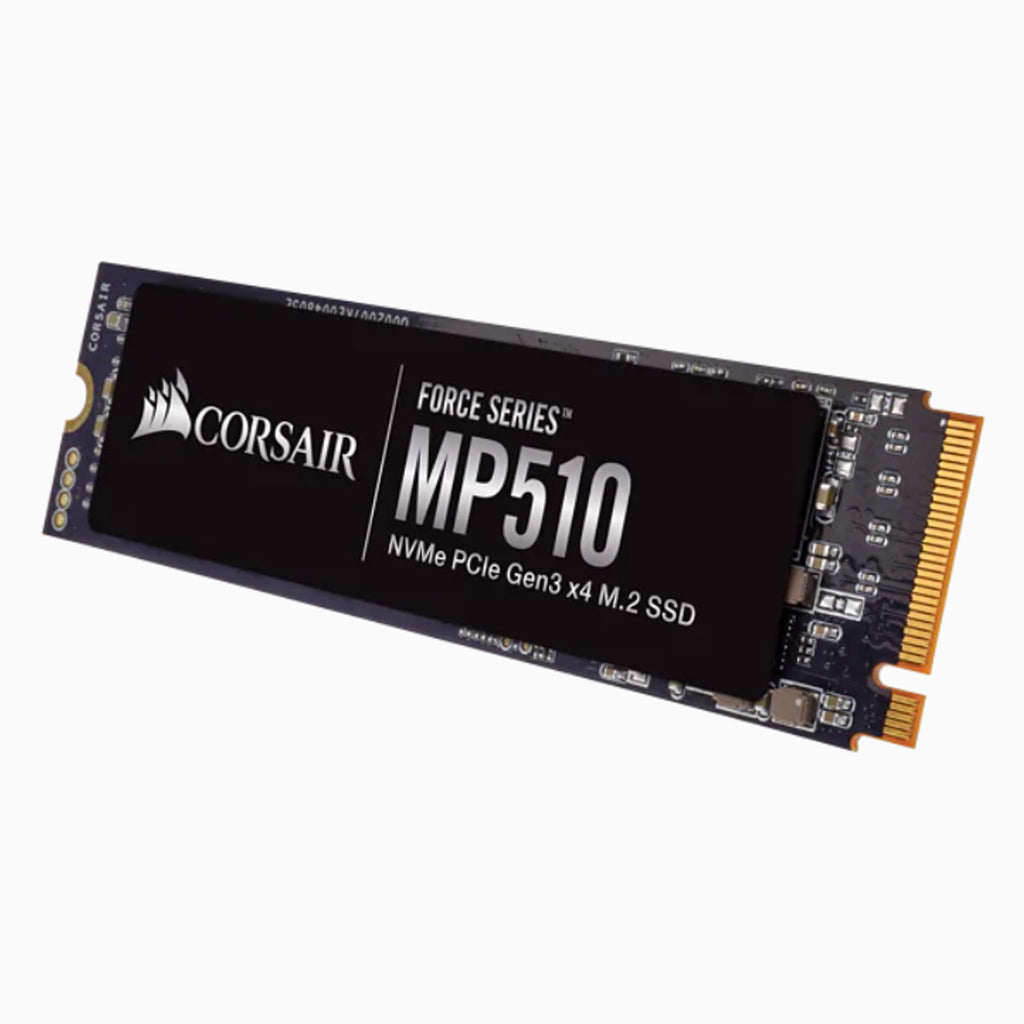

Corsair Force Series MP510 960GB M.2 SSD

Corsair Force Series MP510 960GB M.2 SSD

The CORSAIR Force MP510 NVMe PCIe Gen3 x4 M.2 SSD provides extreme storage performance with blazing fast read speeds of up to 3,480MB/sec.

EXTREME STORAGE PERFORMANCE: All-new extreme data performance controller delivers up to 3,480MB/sec sequential read, and up to 3,000MB/s sequential write, for a blazing fast read, write, and response times.

HIGH-SPEED NVME PCIE GEN3 x4 M.2 INTERFACE: For simple connection and maximum bandwidth.

HIGH-DENSITY 3D TLC NAND: Provides the ideal mix of performance, endurance, and value to keep your drive performing at its best for years.

COMPACT M.2 2280 FORM FACTOR: Ultra-compact M.2 2280 size fits directly into your notebook or motherboard with no additional cables or connectors.

COMPREHENSIVE ONE-YEAR CORSAIR WARRANTY: Long-term reliability and industry-leading customer support for peace of mind.

Specifications

SSD Unformatted Capacity: 960 GB

SSD Smart Support: Yes

Weight: 0.055kg

SSD Interface: PCIe Gen 3.0 x4

SSD Max Sequential Read CDM: Up to 3,480MB/s

SSD Max Sequential Write CDM: Up to 3,000MB/s

Max Random Write QD32 IOMeter: Up to 700K IOPS

Max Random Read QD32 IOMeter: Up to 280K IOPS

Power Consumption active: 6.9W Average

Power Consumption Inactive: 30mW

Form Factor: M.2 2280

Dimensions: 80mm x 22mm x 3mm

Application Consumer: Client

Weight: 0.0082

Model: CSSD-F960GBMP510B

NAND Technology: 3D TLC NAND

Voltage: 3.3V, +/- 5%

Endurance: 720 TBW

TBW: 720

MTBF: 1,800,000 Hours

DEVSLP: L1.2 < 2mW

Encryption: AES 256-bit Encryption

Storage Temperature: -40°C to +85°C

SSD Operating Temperature: 0°C to +70°C

SSD Shock: 1500 G

Storage Humidity: 93% RH (40° C)

Operating Humidity: 90% RH (40° C)

Vibration: 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G

Warranty: 1 Year
